Network Monitor Module (NMM)—a compact, intelligent monitoring solution designed to connect existing field-installed fire alarm systems and pump control panels to a centralized remote monitoring platform. Monitor equipment status, receive real-time event notifications, and identify communication failures across geographically distributed locations without replacing legacy equipment.
Engineered for flexible integration, the NMM interfaces seamlessly with a wide range of equipment from different manufacturers and varying system types. By collecting digital and analog input status information and transmitting events to a central monitoring server via LAN/WAN Ethernet or cellular GSM networks, it provides a unified, real-time operational dashboard.
Each module is assigned a unique device identification ID, allowing the central station to accurately identify individual sites, track events, and continuously supervise communication links to detect offline states or disconnections immediately.
Instant visual and audible alarms in the central control room upon event activation.
Map-based dashboard overview identifying precise panel locations instantly.
Complete historical event logs for compliance, auditing, and response analytics.
Direct push alerts and SMS notifications sent to safety officers and technicians.

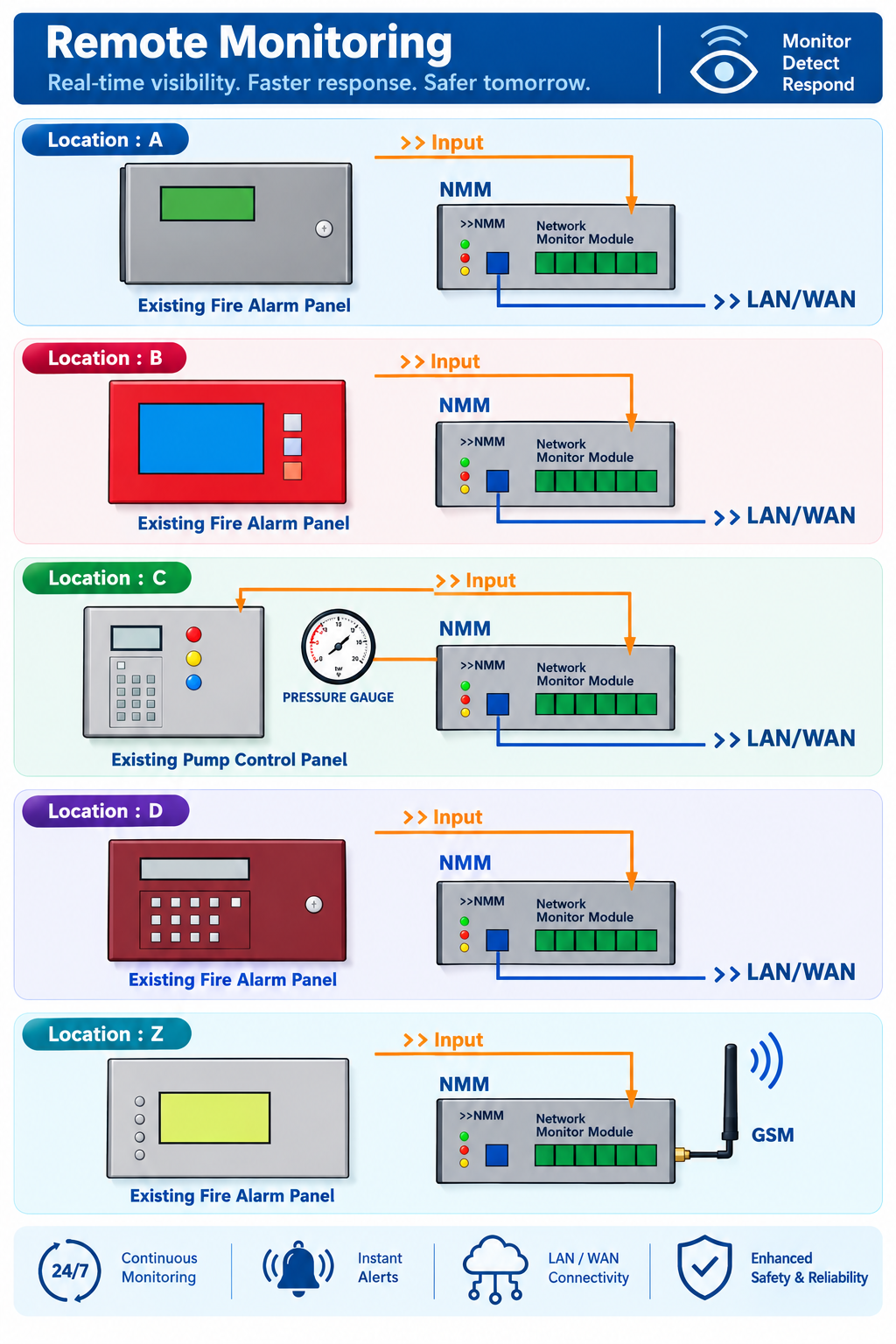

Figure 1: Multi-site installation layout connecting diverse fire and pump control panels across Locations A through Z via Ethernet LAN/WAN or GSM cellular infrastructure.

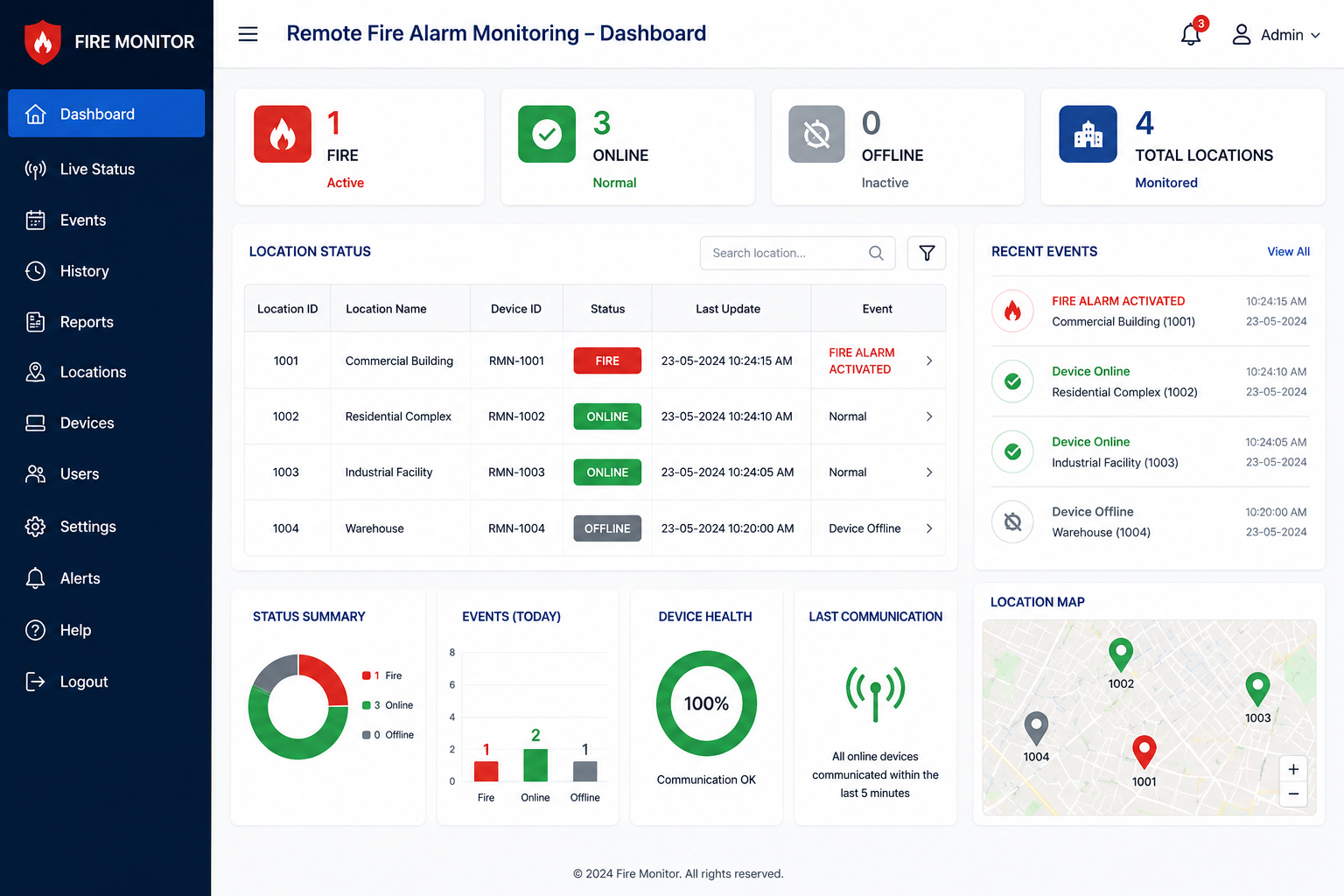

Figure 2: Web-based central monitoring server interface providing live status, active alerts, device health metrics, and comprehensive reports.

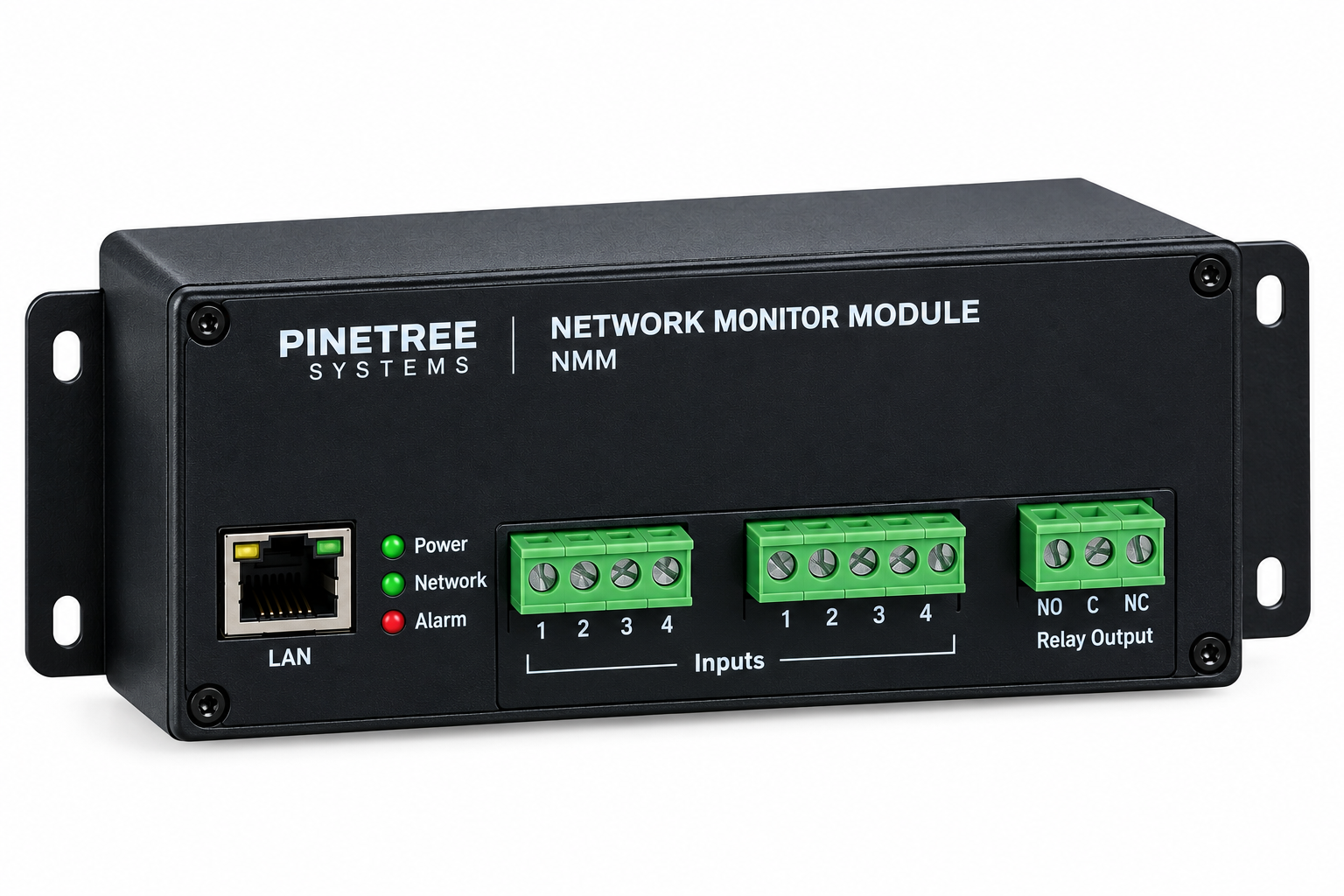

Model: PTSNMMLX901
Designed for installations where a reliable Ethernet network with Internet access is available. The LAN variant interfaces directly with existing fire detection equipment and pump control panels, transmitting status updates over standard TCP/IP or HTTP protocols to the central server.
| LAN Specification (PTSNMMLX901) | |
|---|---|
| Product Class | Addressable - IP |
| Housing | MS (Metal Chassis) |
| Protocols | UDP / TCP/IP / HTTP |
| Operating Voltage | 12V - 24V DC |
| Network Mode | RJ45 Ethernet |
| Configuration | Web-Based |

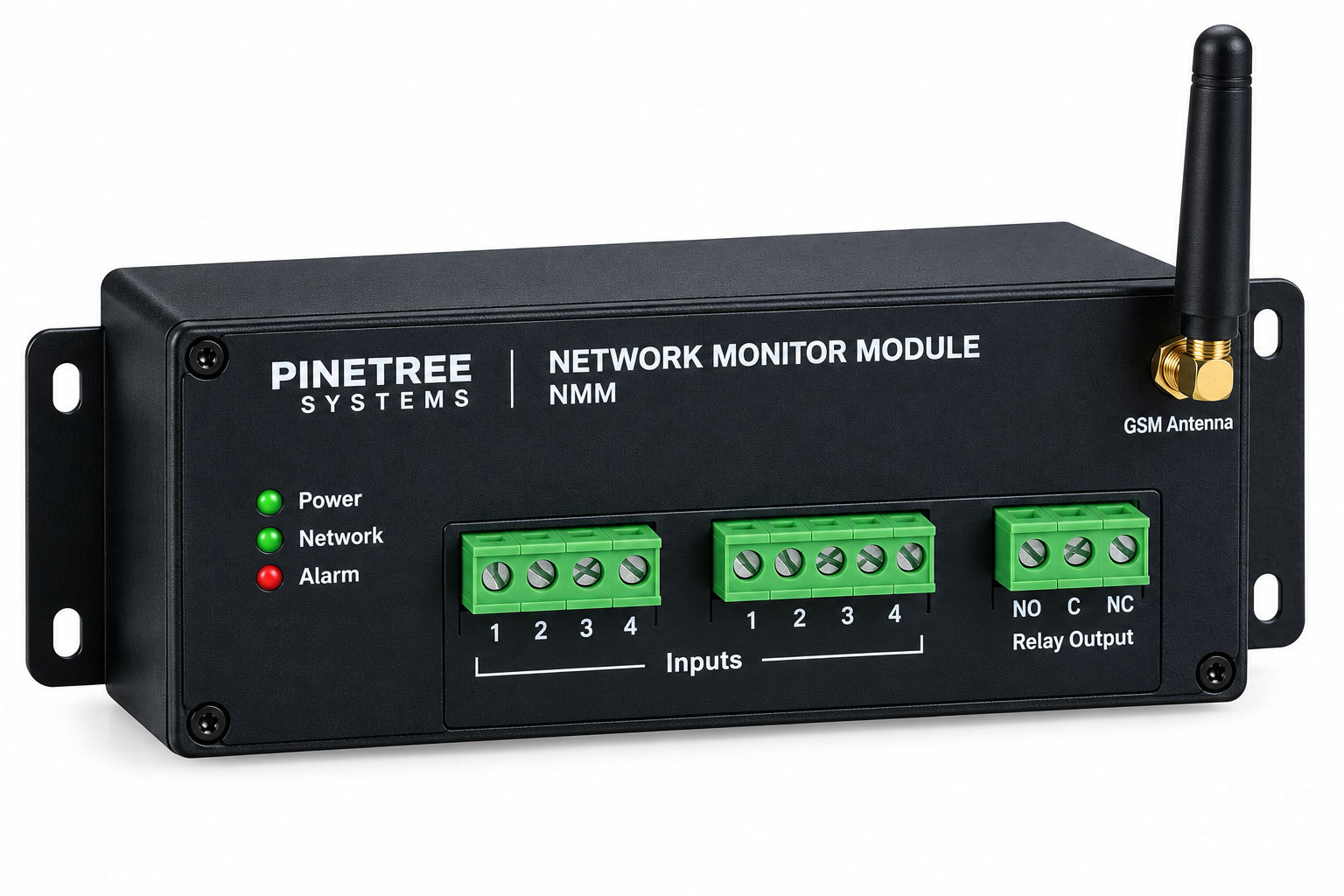

Model: PTSNMMGX901
Engineered for remote sites and installations where standard wired network infrastructure is unavailable. Equipped with an integrated GSM communication module and high-gain antenna, it transmits event notifications securely via SIM-based cellular mobile networks.
| GSM Specification (PTSNMMGX901) | |
|---|---|
| Product Class | Addressable - GSM |
| Housing | MS (Metal Chassis) |
| Cellular Band | GSM/GPRS/EDGE 900/1800 MHz |
| Operating Voltage | 12V - 24V DC |
| Network Mode | GSM / Cellular |
| Configuration | Web-Based |
